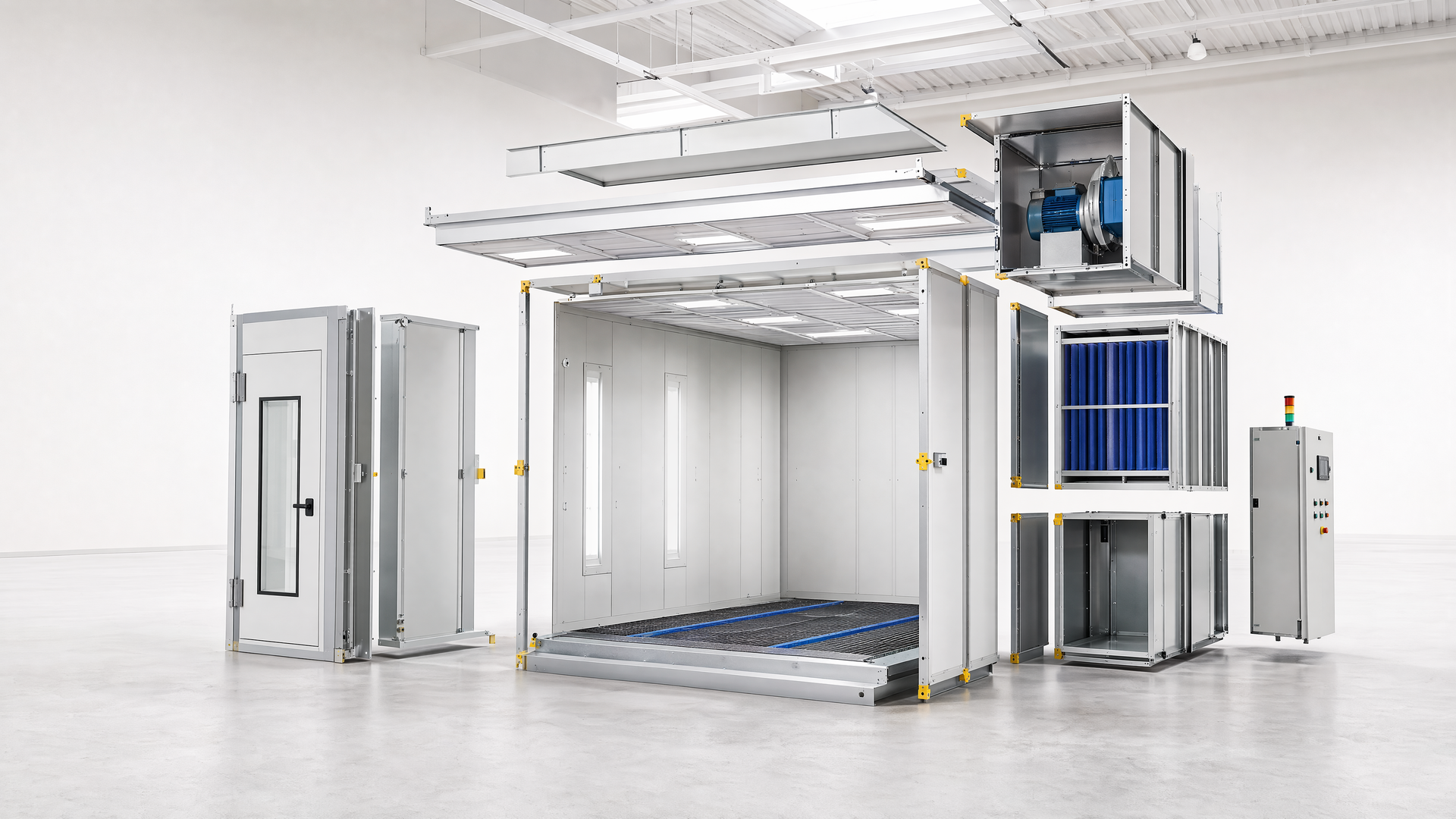

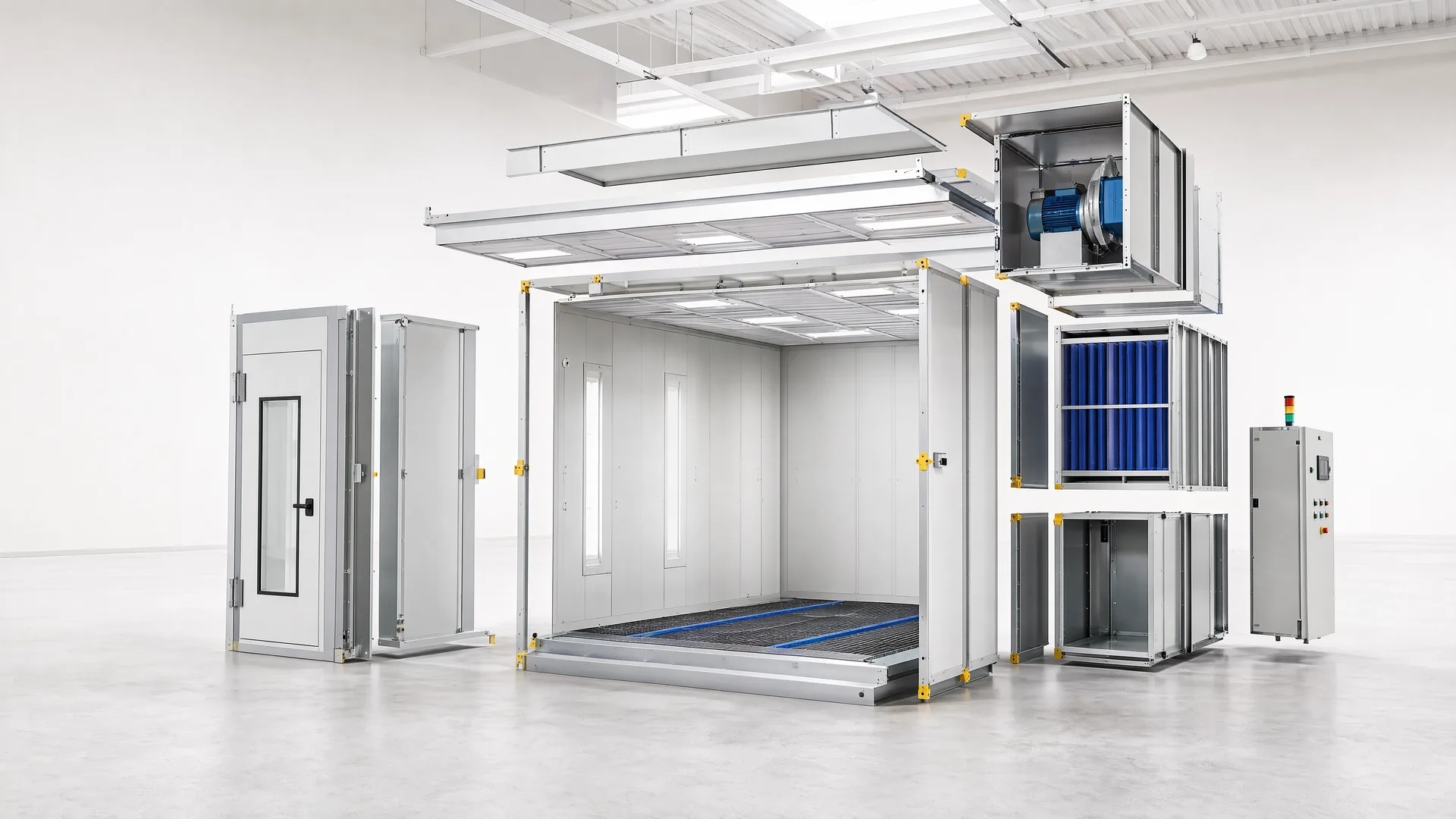

Representative exploded custom modular spray booth with structural modules and coordinated equipment

Custom Modular spray-booth systems

Built around your process. Broken down for assembly.

Tell us the workpiece, site and finish. We develop the booth from zero, manufacture the structural modules, coordinate the equipment, prepare the kit for local assembly and support commissioning.

Start your projectSee the modules

Representative configuration. Exact equipment, interfaces, site work and commissioning scope are agreed for each project.

Articles / Complete index

Read every guide in a stable order.

5 articles, organized for a quick first answer and a deeper technical handoff.

Open Articles

01 One coordinated system

One booth. Only the modules you need.

No fixed catalogue models. Begin with the structure, add the equipment you want us to coordinate, and keep local supply where it makes sense.

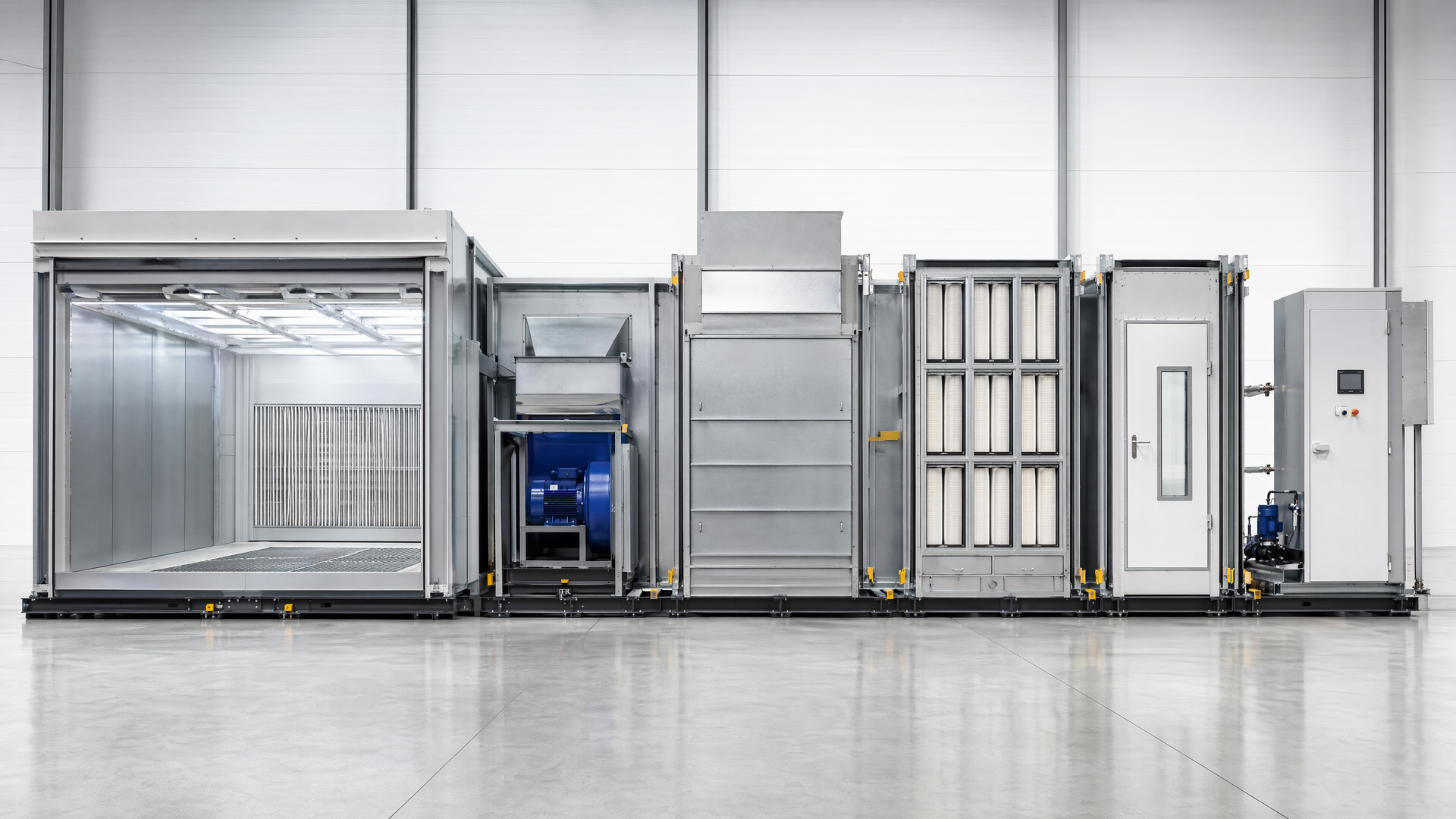

Six modular spray-booth families aligned as one coordinated system
Enclosure / Air supply / Exhaust / Filtration / Access and lighting / Controls and equipment

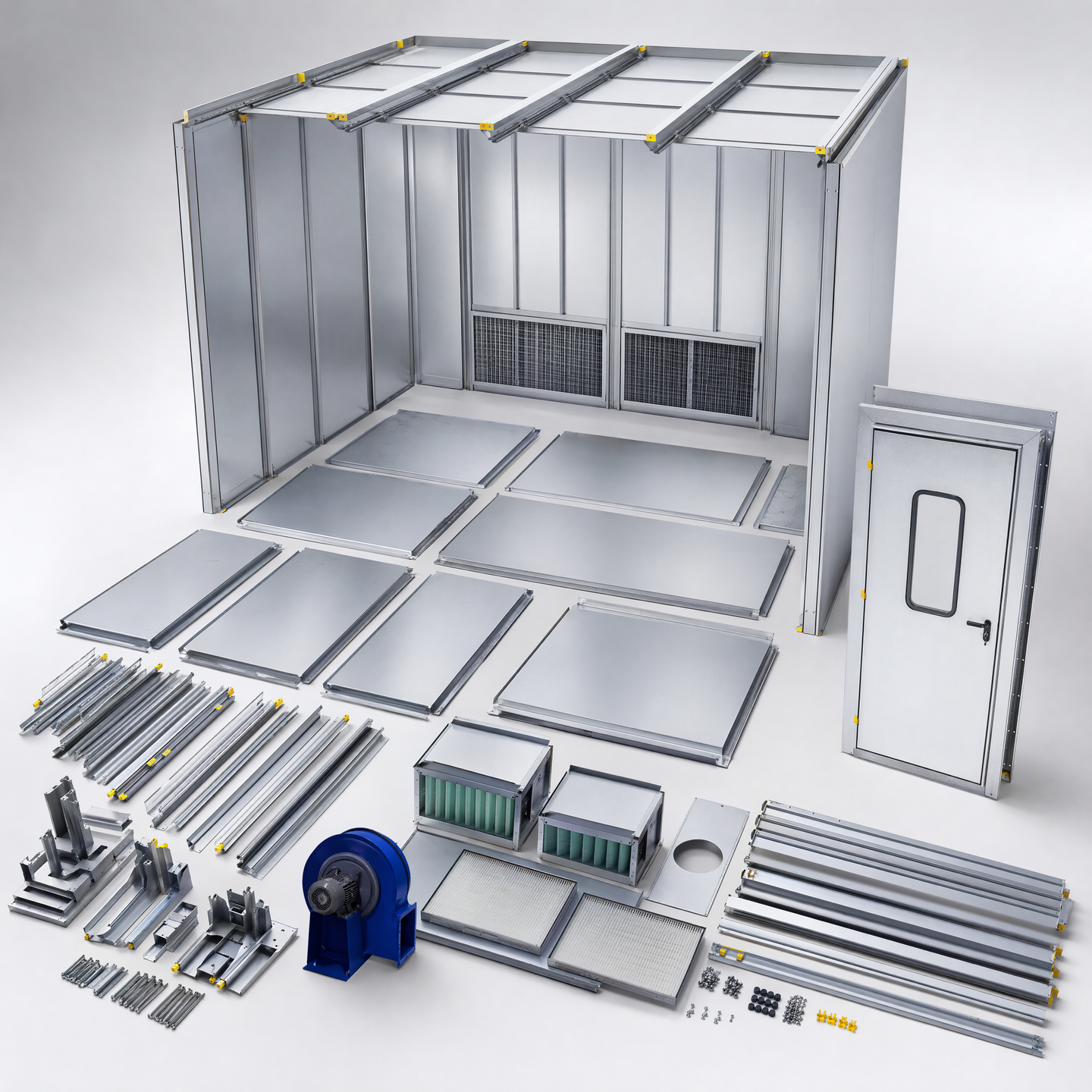

Representative enclosure wall ceiling and door module kit

01 / Enclosure

Define the working space.

Walls, ceilings, doors, rails and structural connections designed as one shell.

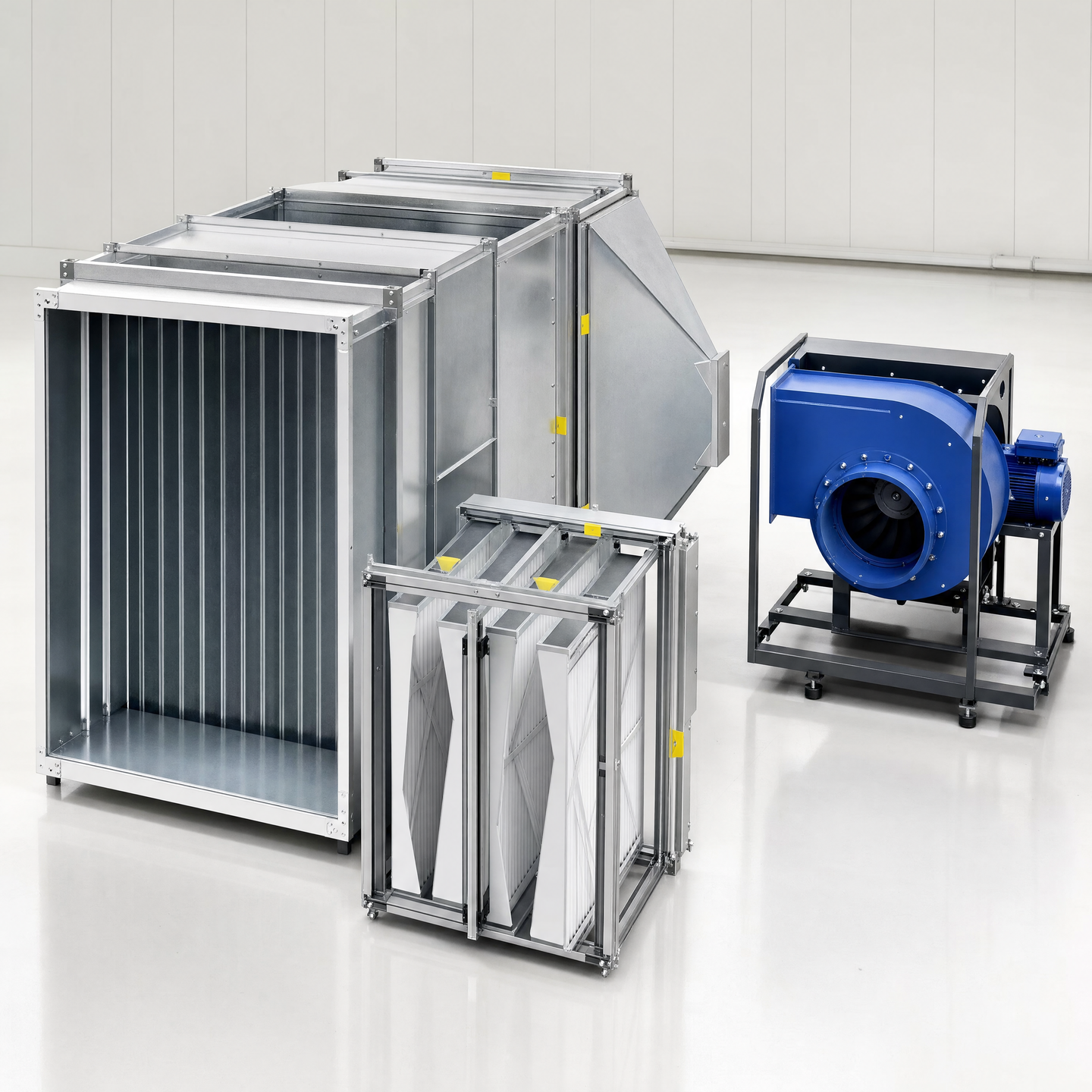

Representative air-supply plenum intake and generic fan group

02 / Air supply

Bring air to the agreed interface.

Plenums, intake structures, filter supports and selected supply equipment.

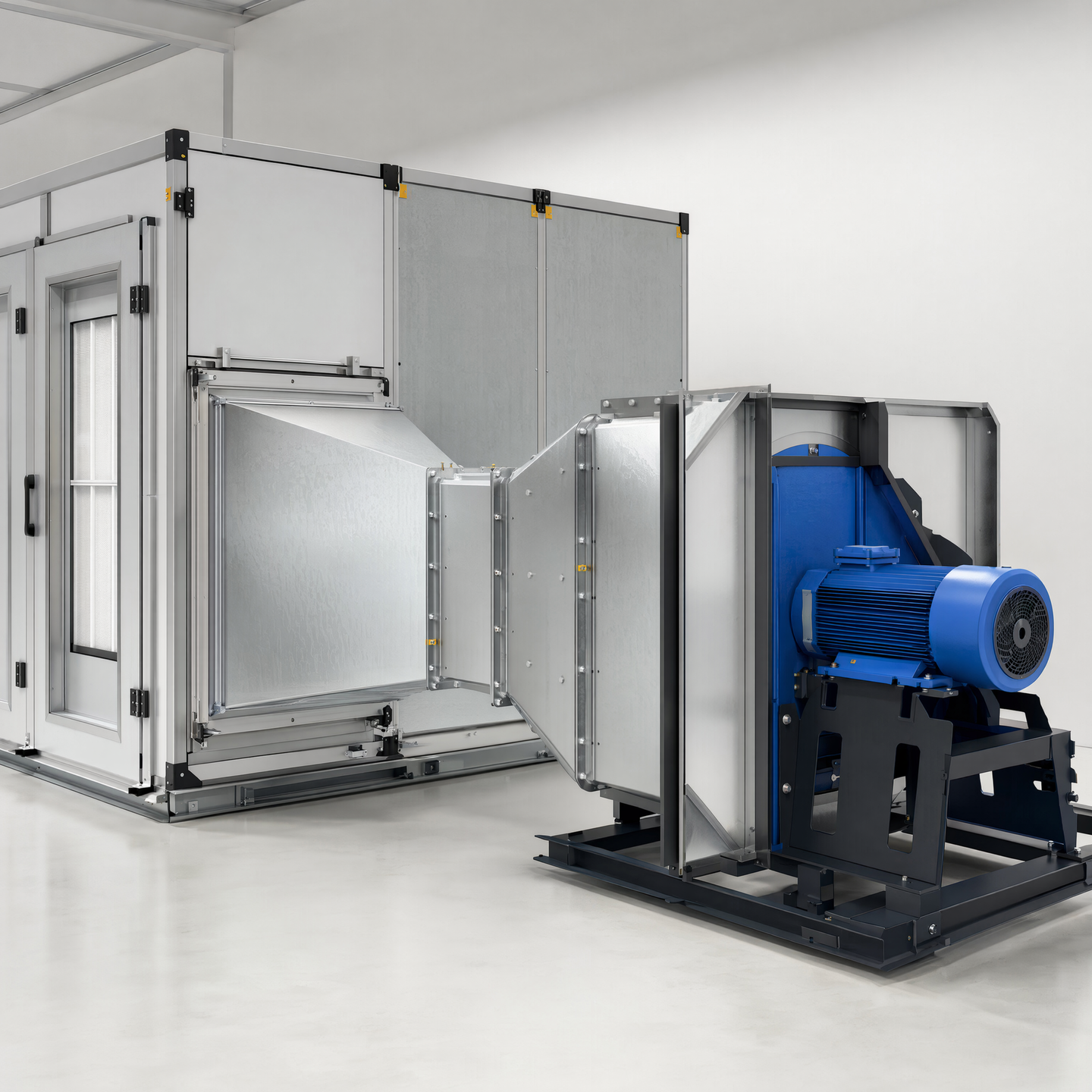

Representative exhaust chamber transition and generic fan group

03 / Exhaust

Connect the removal path.

Exhaust chambers, transitions, ducts and generic equipment within the agreed scope.

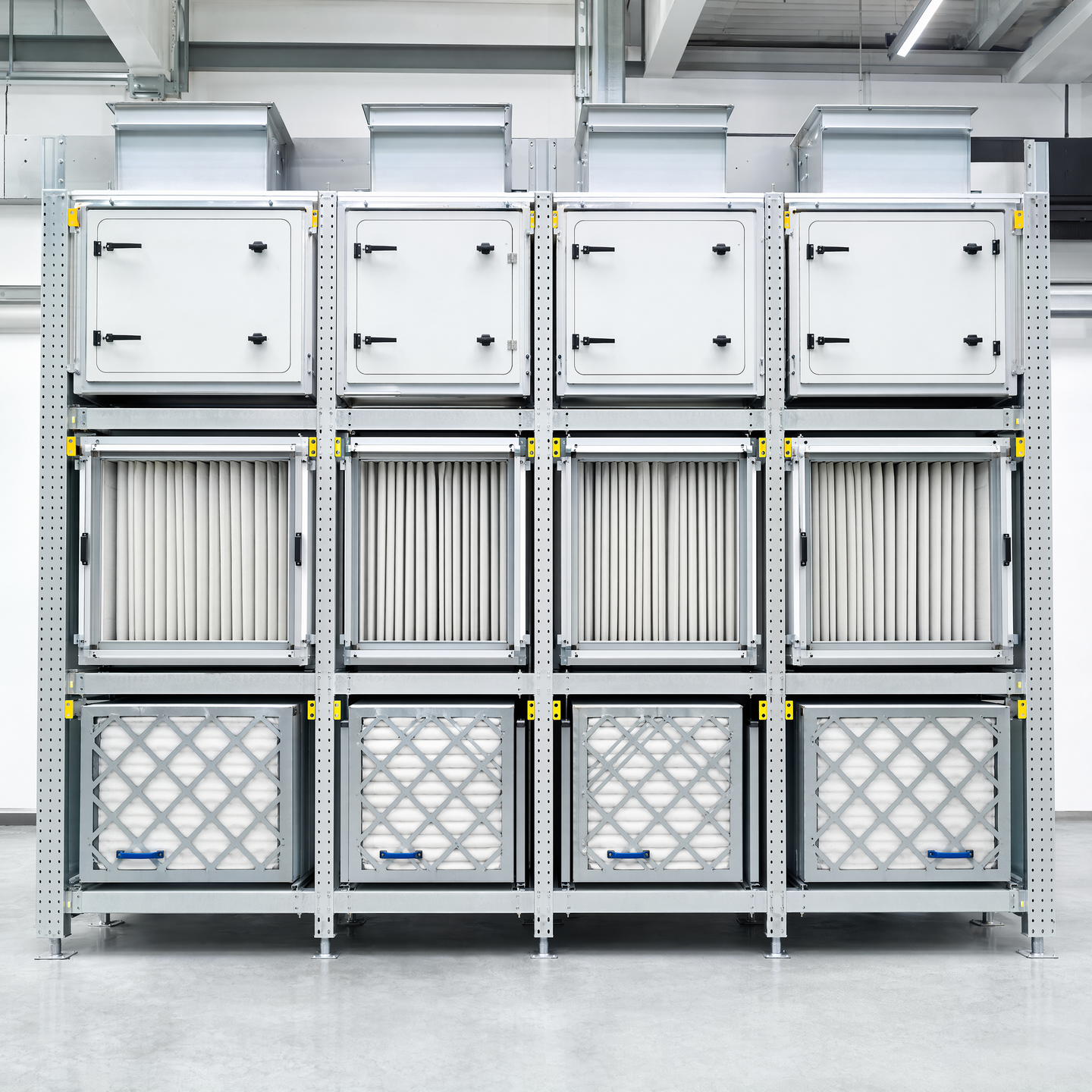

Representative filter-frame banks with maintenance access

04 / Filtration

Hold filters where service stays practical.

Support frames, cassettes and maintenance openings arranged around the project.

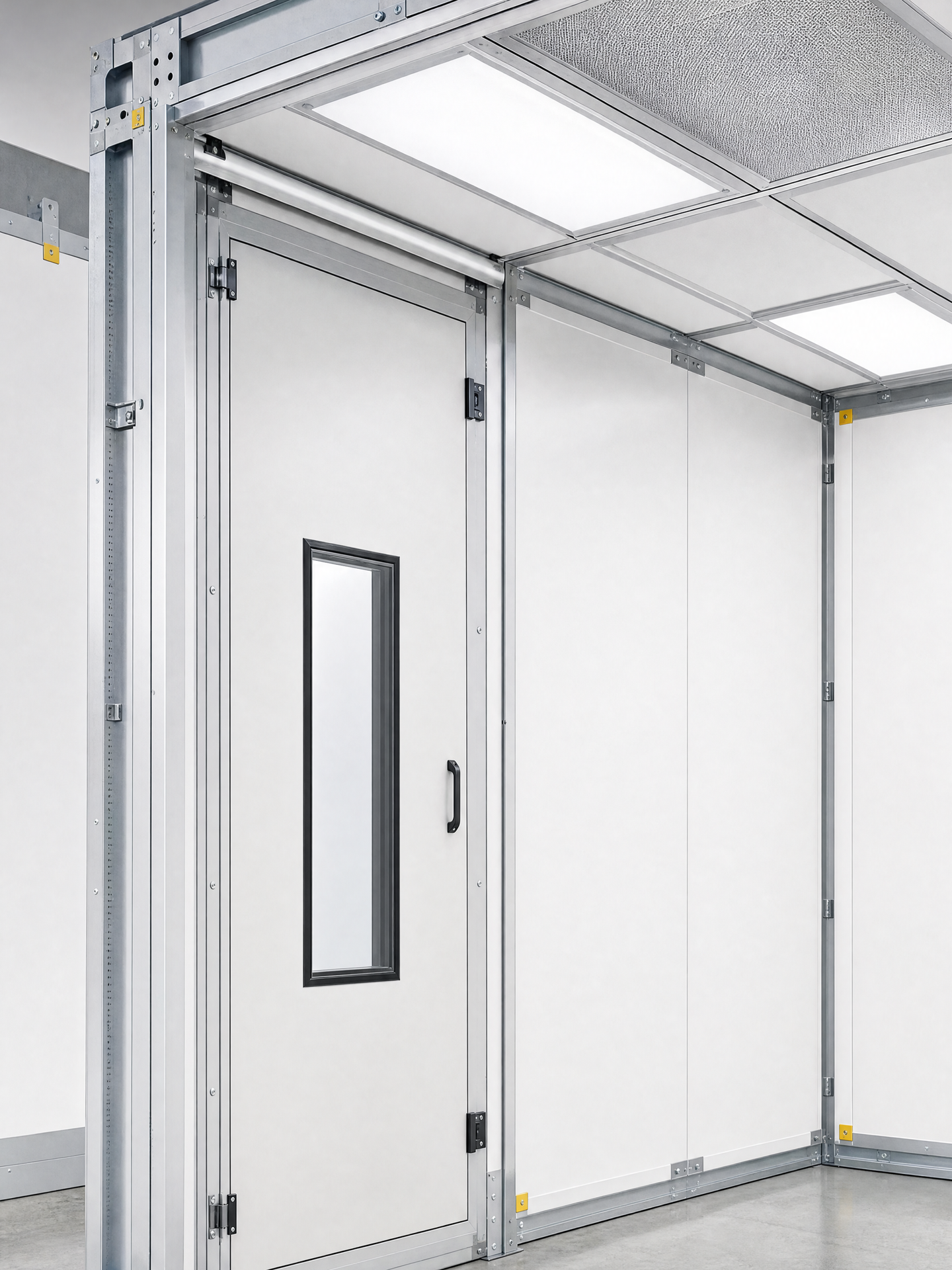

Representative access door and ceiling lighting module

05 / Access & lighting

Make daily use straightforward.

Personnel or workpiece access and lighting interfaces built into the module plan.

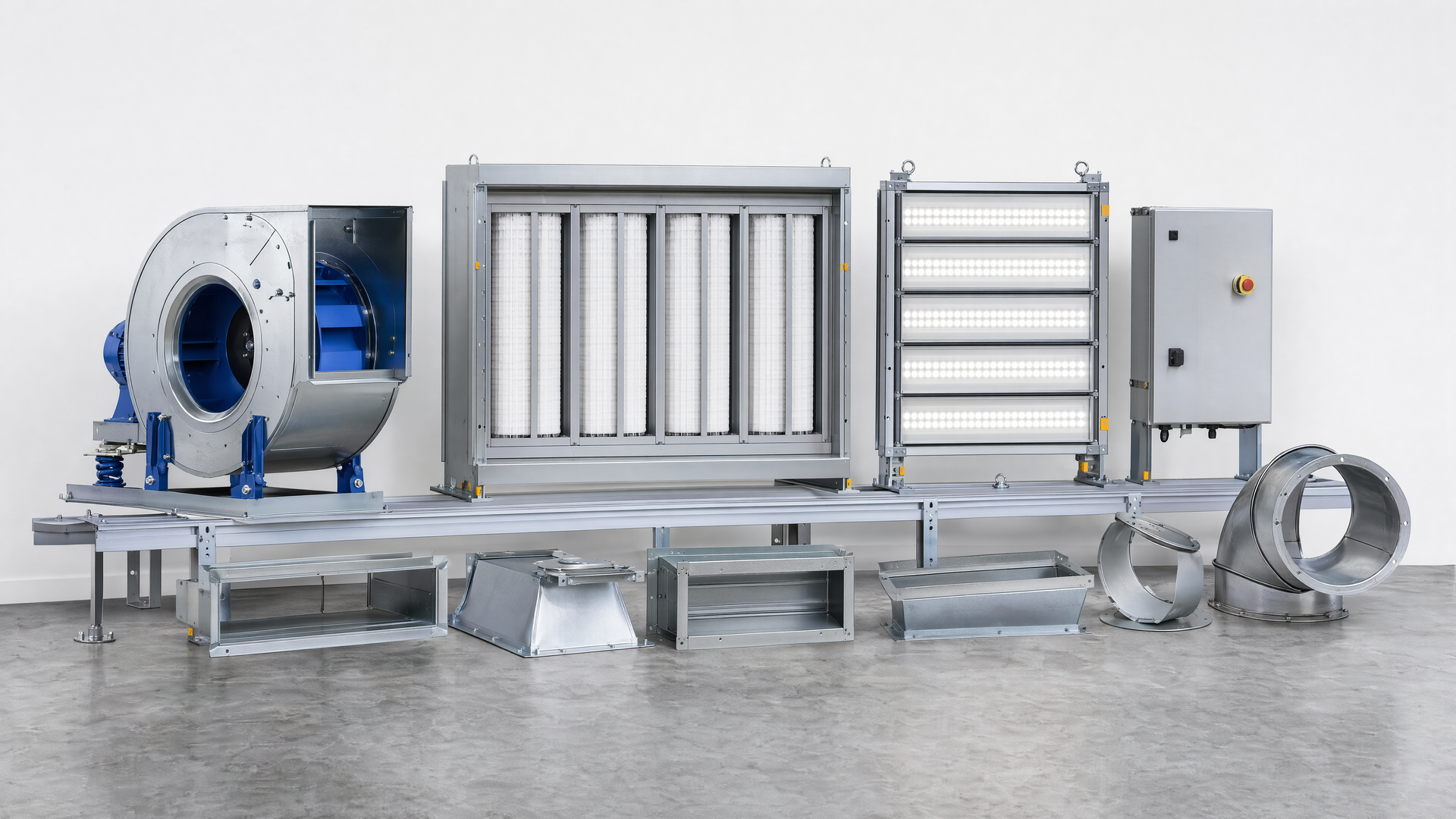

Representative generic fan filtration lighting and control equipment package

06 / Controls & equipment

Coordinate what belongs together.

Selected fans, filters, lights and controls aligned with the structural interfaces.

02 From requirement to handoff

Make the custom project easier to understand.

The system is custom. The delivery method is disciplined: define, coordinate, identify, assemble and commission around an agreed responsibility boundary.

Illustrative planning image with requirement brief site plan and modular booth study

01 / Define

Start with the requirement.

Workpiece, site, process, supply scope and destination are enough to begin.

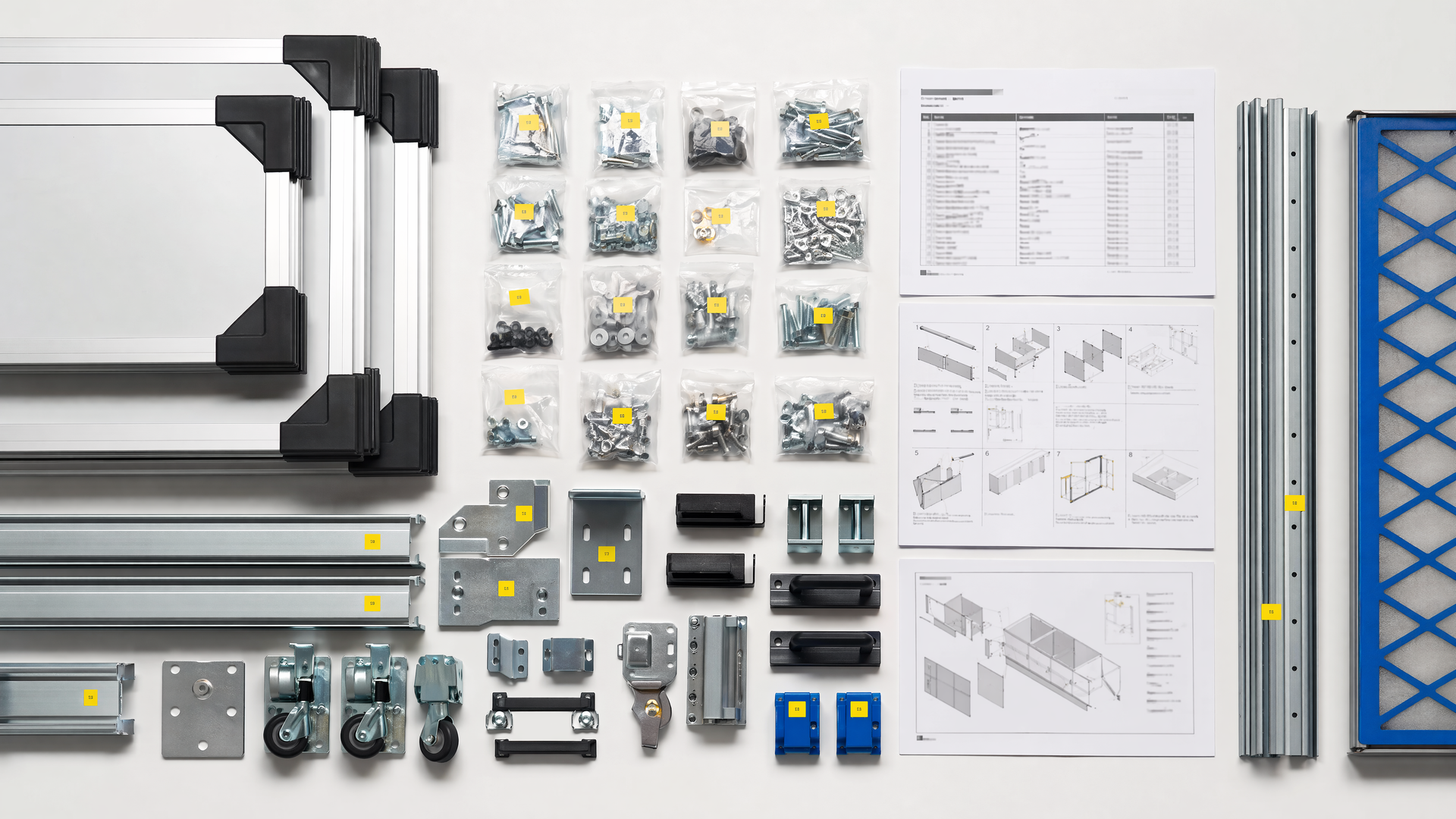

Representative modular kit hardware and assembly documentation arranged for handoff

02 / Prepare

Number and pack the kit.

Module IDs, hardware groups, packing information and assembly sequence stay connected.

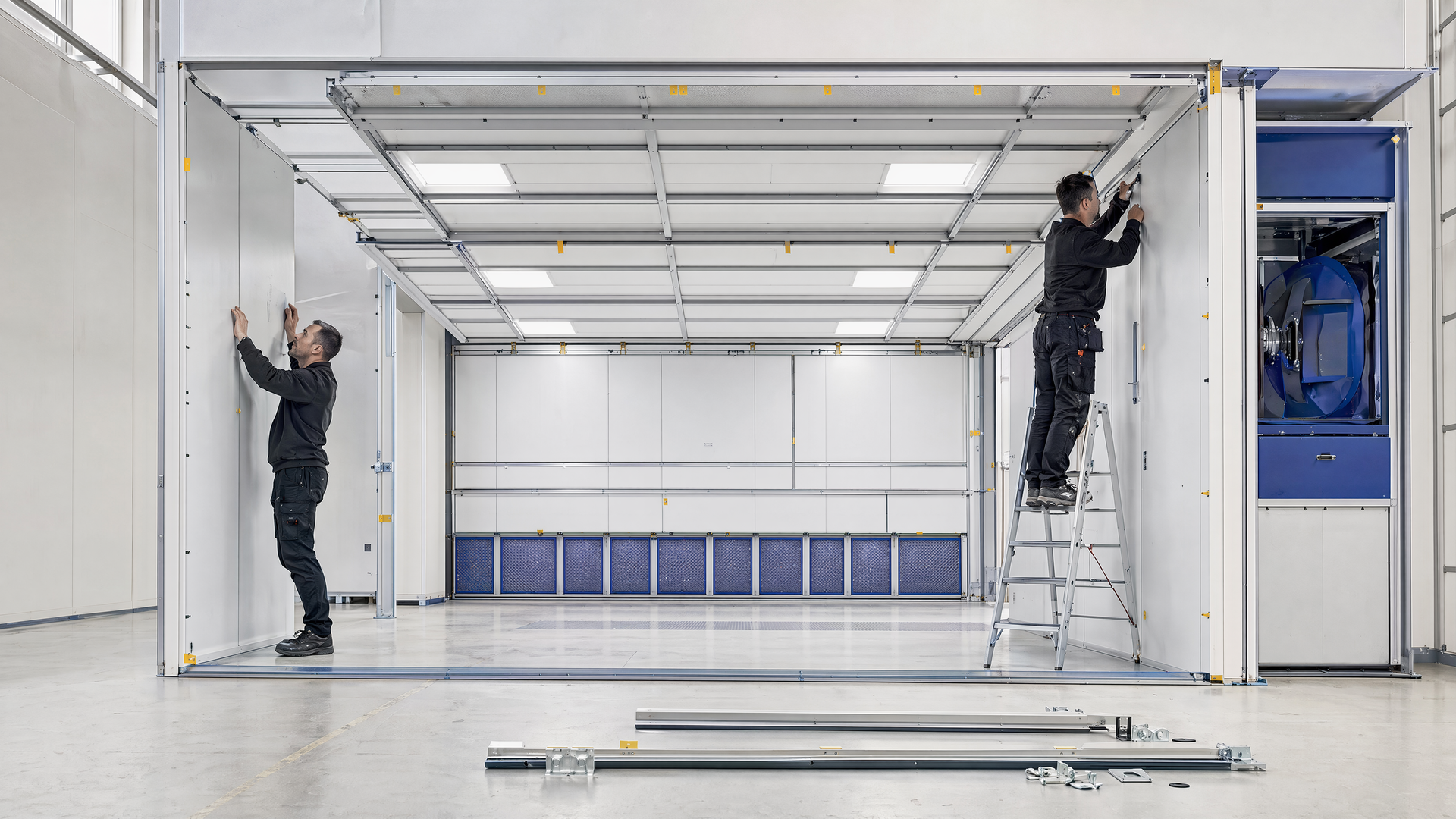

Representative local team assembling modular spray-booth panels

03 / Assemble

Build it at the destination.

The local team follows the supplied sequence around prepared foundations and utilities.

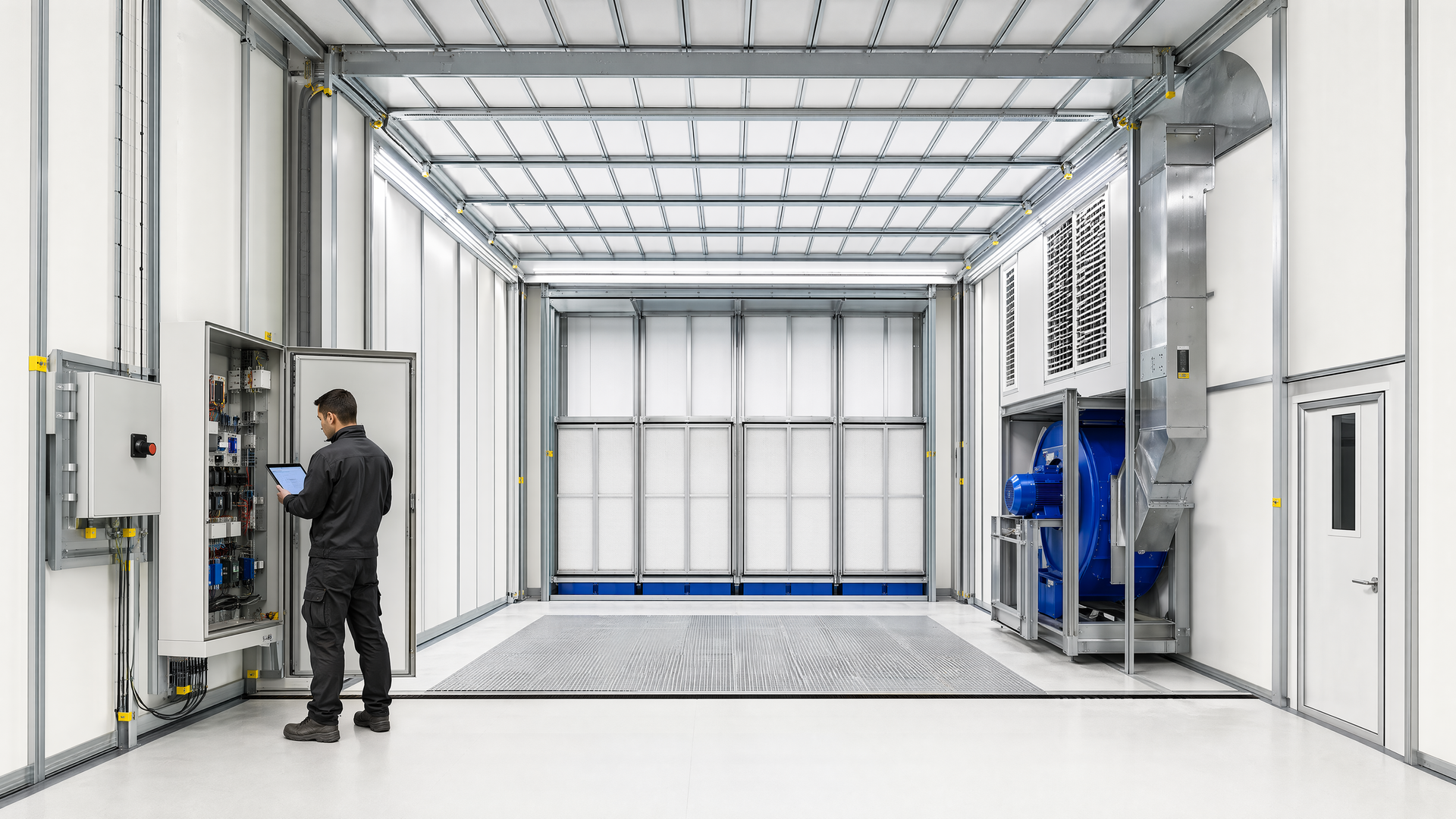

Representative commissioning support inside a completed modular booth

04 / Commission

Finish with agreed support.

Remote or agreed on-site support helps the project reach a clear handoff.

03 Clear ownership

Made here. Sourced together. Prepared on site.

A custom package works when every boundary is visible before anything ships.

Made by StelBooth

Structural modules

Enclosures, doors, frames, plenums, ducts or transitions, filter supports and the agreed connection pieces.

Selected & supplied

Coordinated equipment

Project-specific fans, filters, lighting and controls selected within the agreed supply package.

Prepared on site

Destination conditions

Foundations, pits, utilities, permits, licensed connections and other local work defined for the project.

Tell us what must fit. We will organize the system around it.

Start your project
